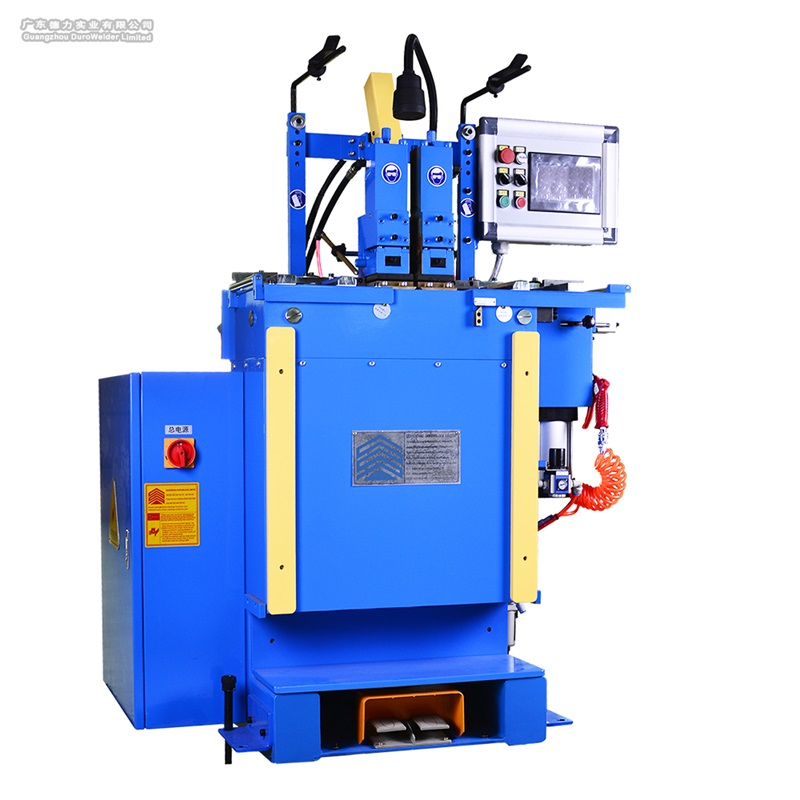

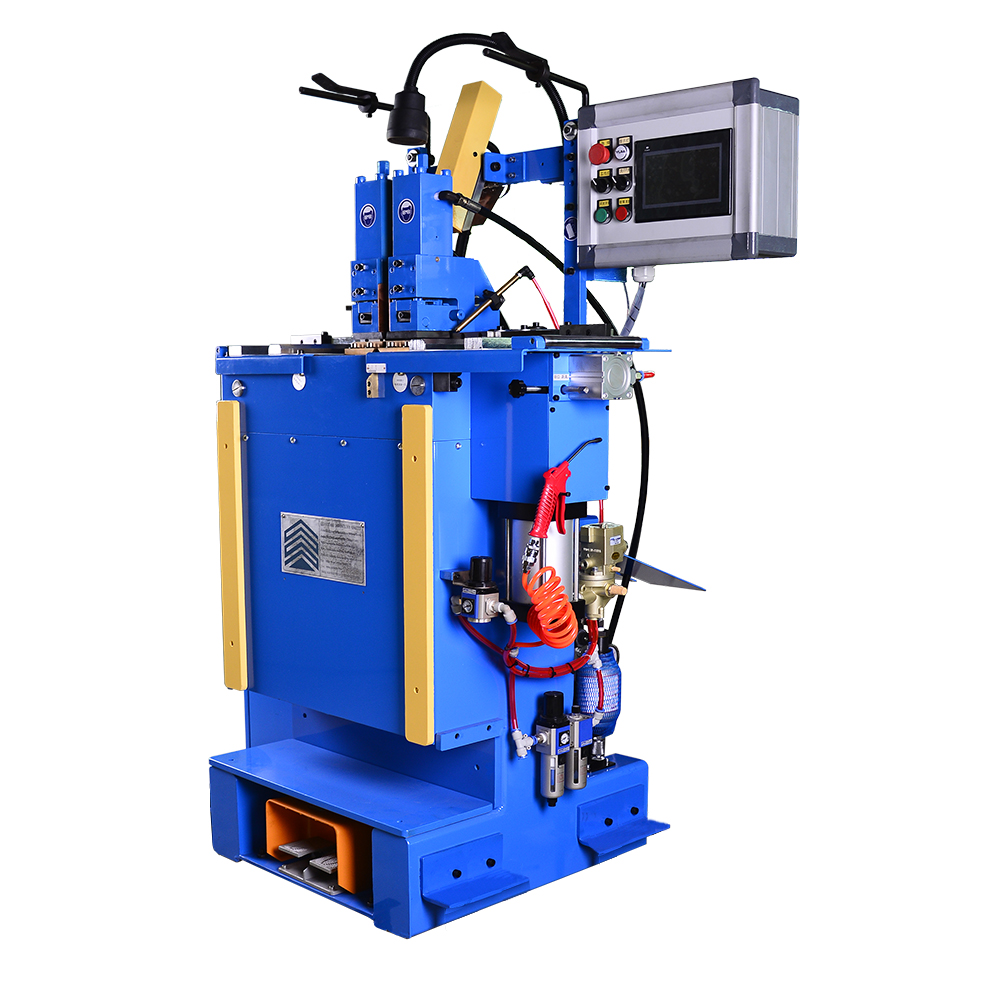

BAS-080
Main Descriptions and Advantages
1. Vertical hydraulic clamping cylinders, much more stable.
2. Pneumatic upsetting cylinder.
3. Automatic Thyristor annealing device with infrared thermometer which can set and control the annealing temperature. Annealing time and voltage is also adjustable.
4. Automatic butt welding and annealing process.
5. Computerized Automatic Welding and Annealing Controlling System which can set the welding current, upsetting force, welding time, and other welding parameters easily.
Main Technical Parameters
Paramaters and Model | BAS 100 |
Capacity at 50% Duty Cycle 50% | 25KVA |
Metal Bandsaws (Bi-metall,Tungsten) | 15-54mm |
Wood-Cutting Bandsaws | 15-80mm |
Stainless Steel Bandsaws | 15-67mm |
Bandknives for Leather, Foam | 25-800mm |
Steel Strip (Ordinary) Max Cross Section | 200mm² |
Steel Strip Max Clamping Width | 100mm |
Net / Gross Weight | 620KG / 758KG |
Packing Dimensions (L x W x H) | 130X100X175CM |
Main Descriptions and Advantages
1. Vertical hydraulic clamping cylinders, much more stable.
2. Pneumatic upsetting cylinder.
3. Automatic Thyristor annealing device with infrared thermometer which can set and control the annealing temperature. Annealing time and voltage is also adjustable.
4. Automatic butt welding and annealing process.
5. Computerized Automatic Welding and Annealing Controlling System which can set the welding current, upsetting force, welding time, and other welding parameters easily.
Main Technical Parameters
Paramaters and Model | BAS 100 |
Capacity at 50% Duty Cycle 50% | 25KVA |
Metal Bandsaws (Bi-metall,Tungsten) | 15-54mm |
Wood-Cutting Bandsaws | 15-80mm |
Stainless Steel Bandsaws | 15-67mm |
Bandknives for Leather, Foam | 25-800mm |
Steel Strip (Ordinary) Max Cross Section | 200mm² |
Steel Strip Max Clamping Width | 100mm |
Net / Gross Weight | 620KG / 758KG |
Packing Dimensions (L x W x H) | 130X100X175CM |
