BAS-060
BAS-060
Our saw blade butt welding machine is designed for both industrial use and routine maintenance. Different, reliable welding methods are available to suit varied applications.

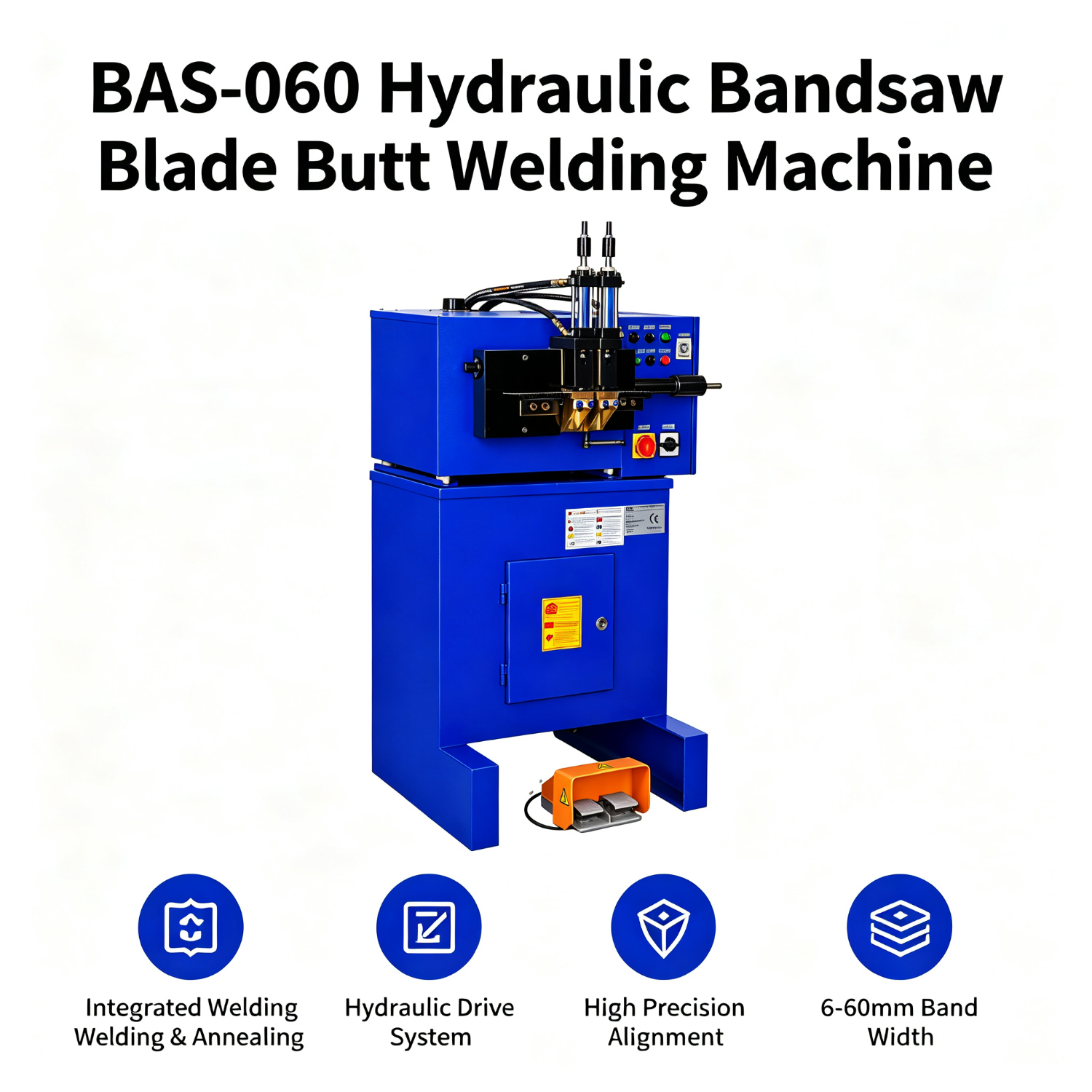

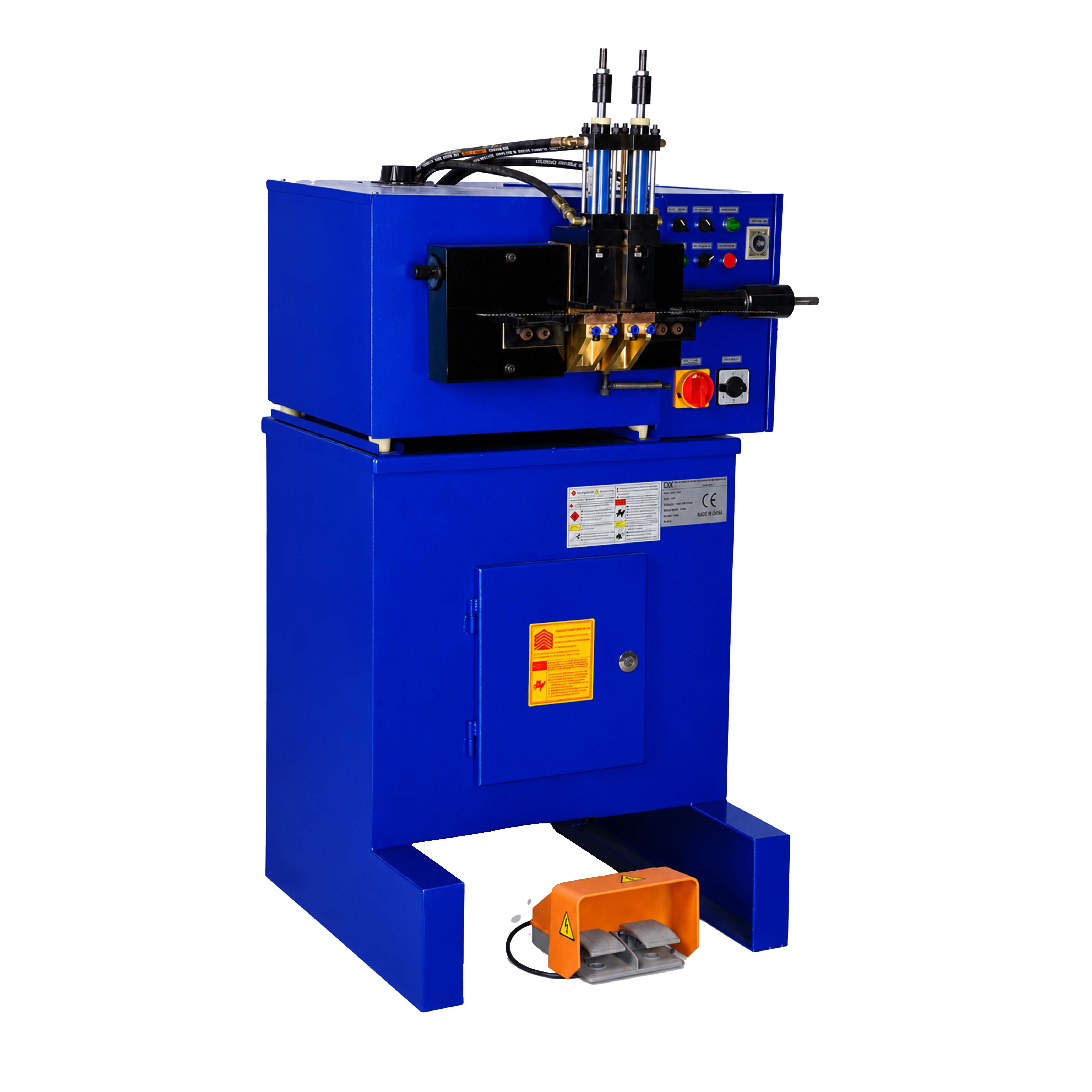

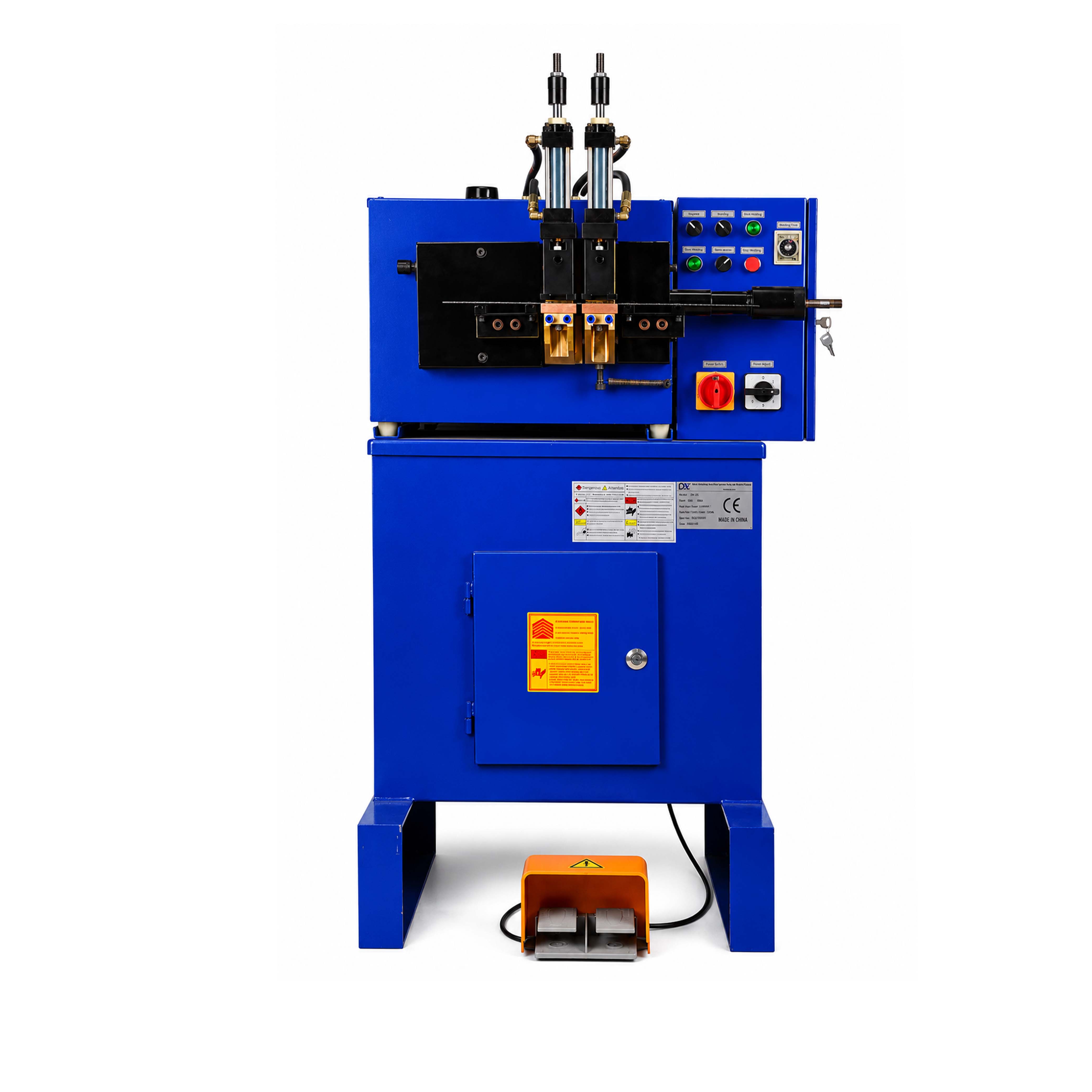

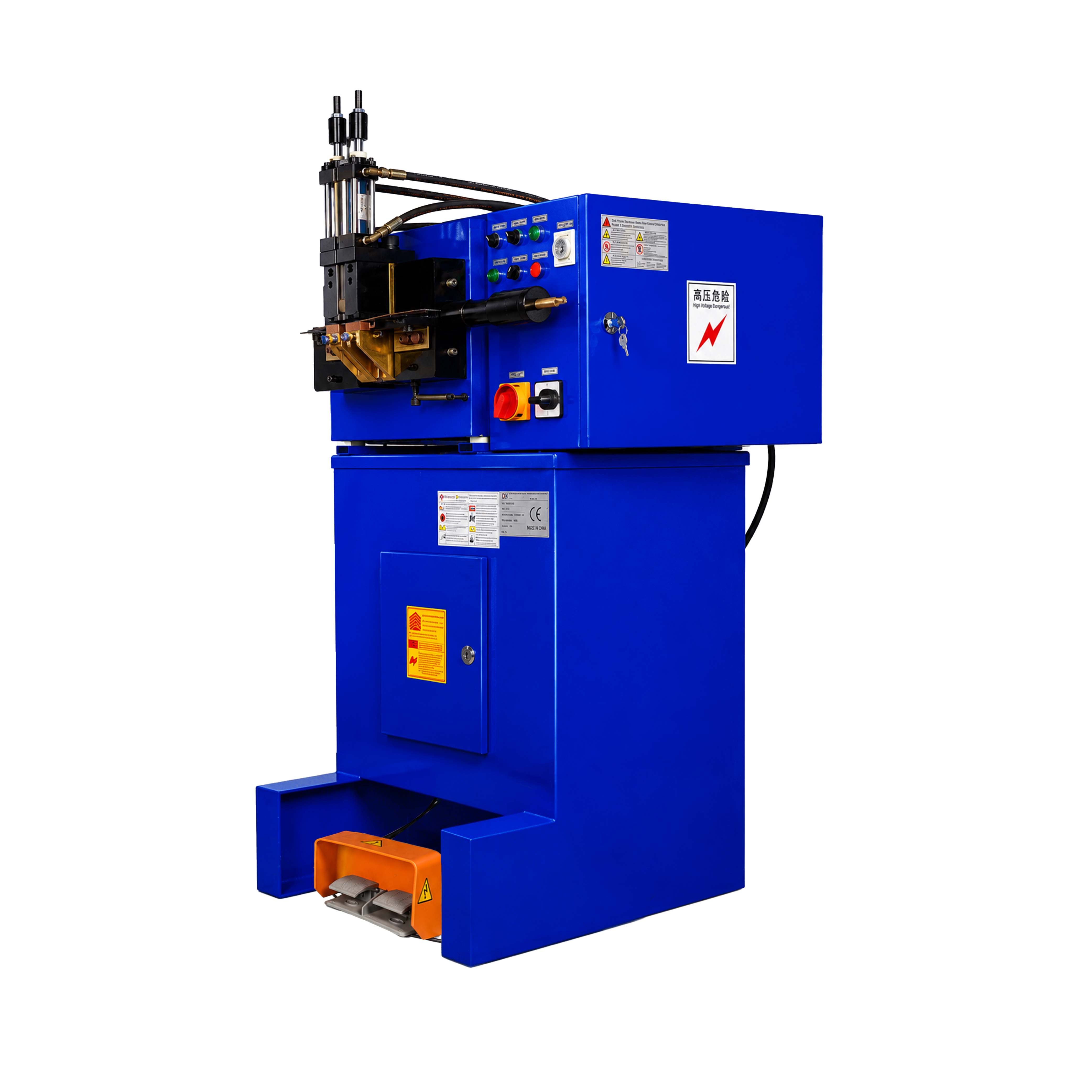

The BAS-060 hydraulic Type Bandsaw Blade Butt Welding Machine features a flash butt welding process combined with a hydraulic clamping system to complete the butt welding of saw blades, followed by low-temperature annealing to relieve welding stress.
The entire machine is centrally controlled by an electrical system that regulates parameters and power to ensure stable welding operations.
Main Features:
Integrated Functions: Combines welding, annealing and hydraulic driving in one unit, supporting one-stop bandsaw blade butt welding operation.
Wide Application Range: Suitable for 6-60 mm bandsaw blades. The machine can work with 380-415V industrial power supply and is suitable for standard saw blade welding applications.

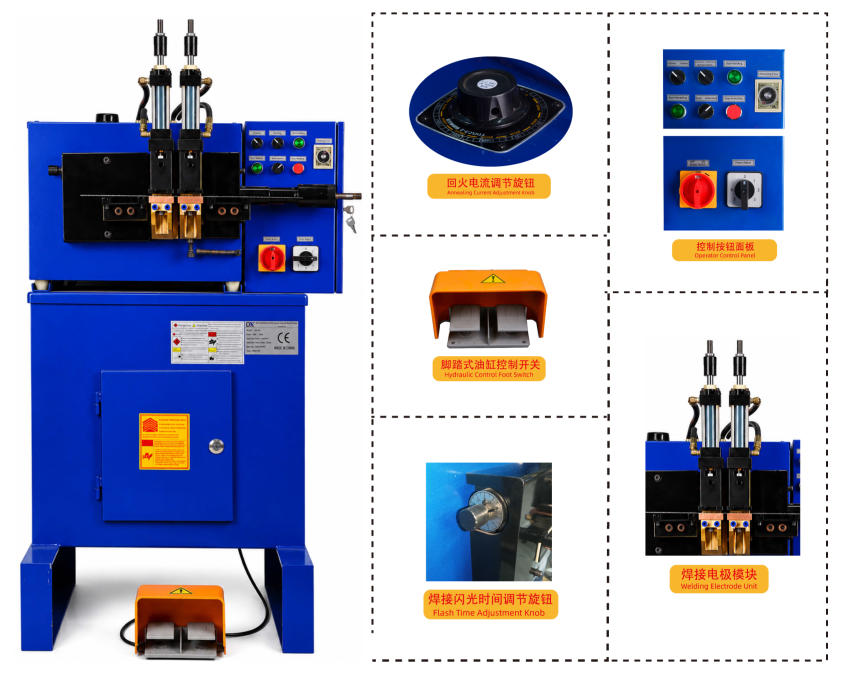

Easy Operation: Clear control panel with buttons, indicator lights and parameter adjustment functions, enabling quick setup and stable operation for beginners.
Stable Operation: Hydraulic driving helps provide steady clamping and feeding force. The machine structure is designed for regular workshop use.
Accurate Alignment: Dual-cylinder clamping structure supports blade alignment. Adjustable parameters help reduce blade deformation and cracking during operation.
Butt Welder Main Technical Parameter
Technical Parameters | BAS-060 Hydraulic |
Rated Voltage | 380V 3-phase / 220V customized |
Rated Power | 6KVA |
Hydraulic motor power | 2.2KW |
Metal Bandsaw (Bi-metal, Tungsten) | 10*0.7~54*1.6MM |
Wood-Cutting Bandsaw | 10*0.7~60*1.0MM |
Stainless Steel Bandsaw | 10*0.4~35*0.8MM |
Band knives | 10*0.4~40*0.8MM |
Upset Pressure | 0-5KN |
Max Hydraulic Press | 7Mpa |
Welder Approx. Weight | 415KG |
Machine Dimension | L:75CM*W:83CM*H:150CM |
