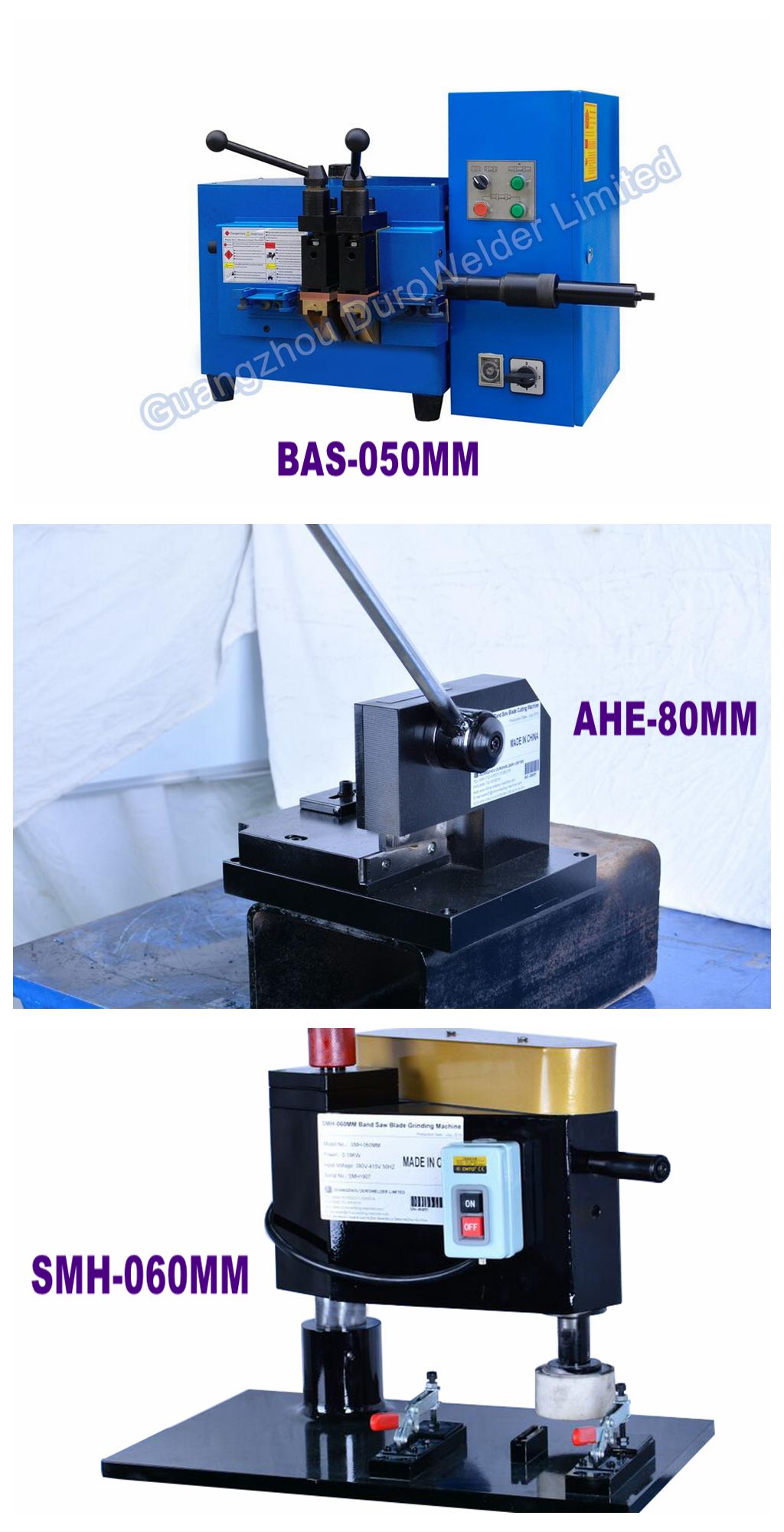

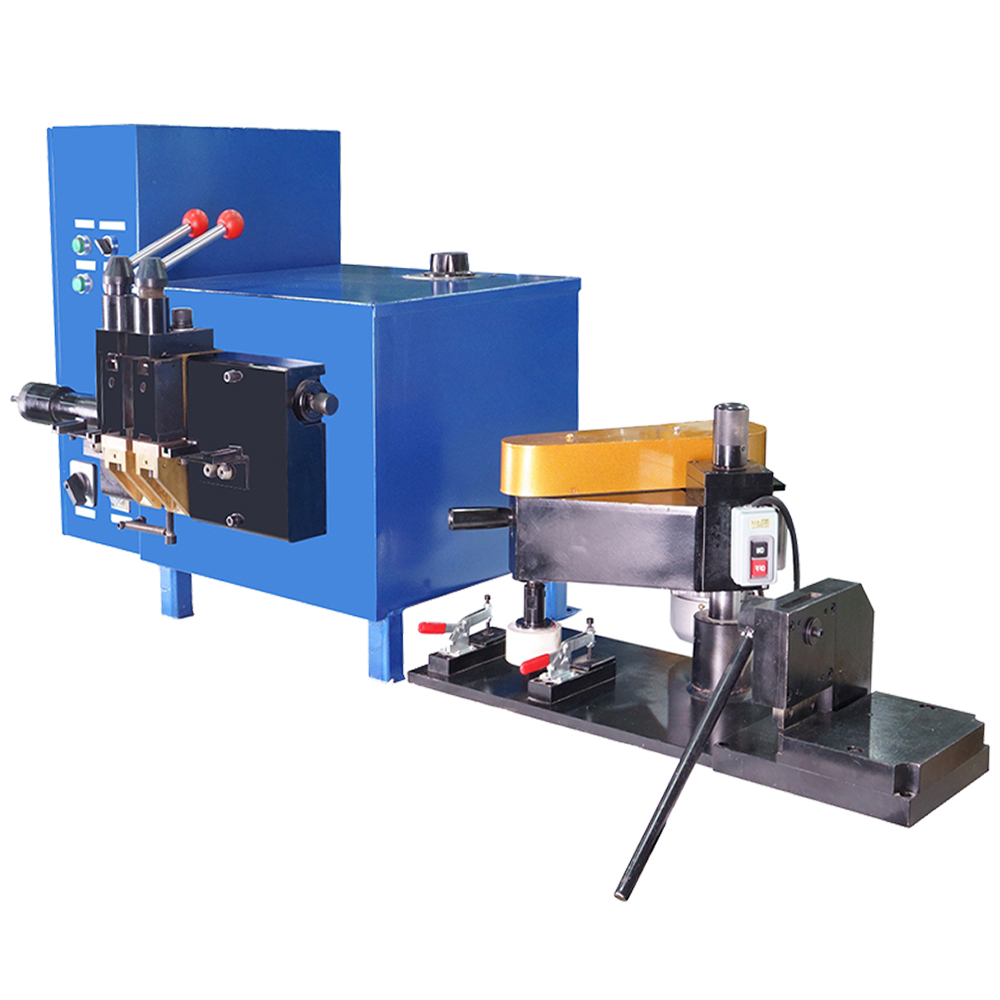

BAS-050 Bandsaw Blade Butt Welding Machine

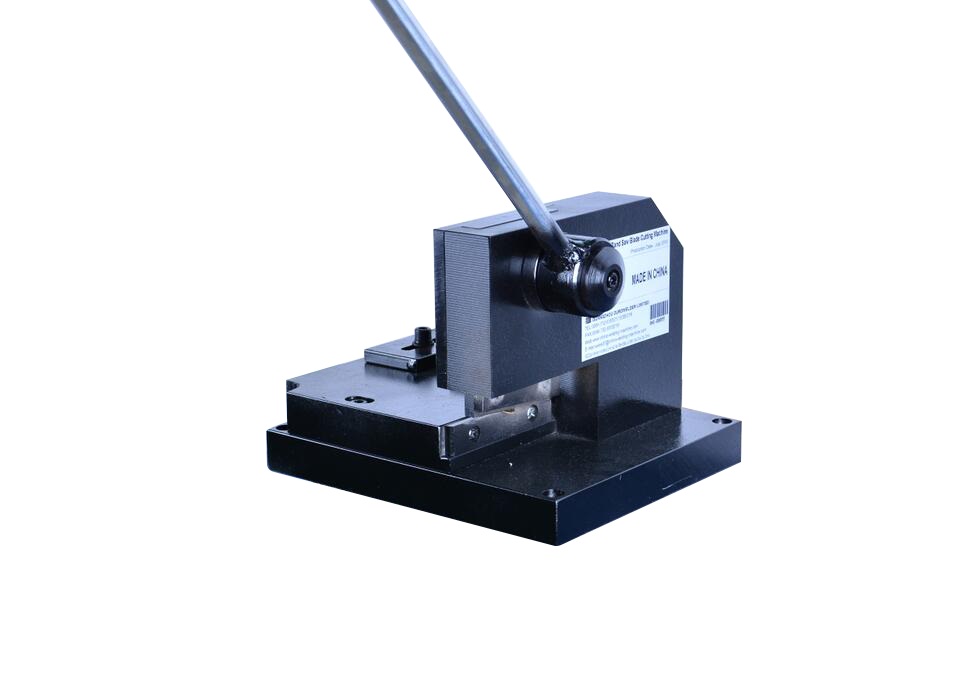

I.AHE-080MM Series Bandsaw Blade Shearing and Cutting Machine

1.Saw Blade Cutting Machine is designed for burr-free,no distortion,square cutting of saw blade ends.

2.Cutter knives are manufactured from special tool steel for long life with multi-blade.

3.Adjustable welding stops for matching the tooth pitch of different kind of bandsaws.

4.Handle clamping jaws for non-slip clamping of strip during cutting process.

5.Various models for different strip widths and cross sections,manually or pneumatically operated,for single or double cutting.

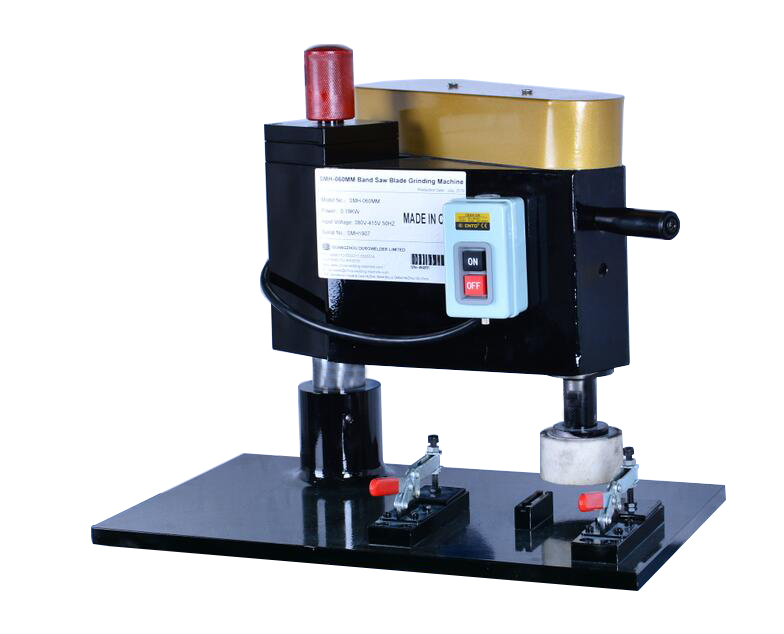

II. SMH-060MM Series Bandsaw Blade Welding Seam Grinding Machine

1.Grinding machines for deburring of welding seam with three-phase motor,on or off switch and working height adjustment.

2.Manual excentric clamping device and pneumatically operated clamping device are both available.

3.Infinitely variable grinding speeds by control knob.

4. Additional lever for precise adjustment of grinding head.

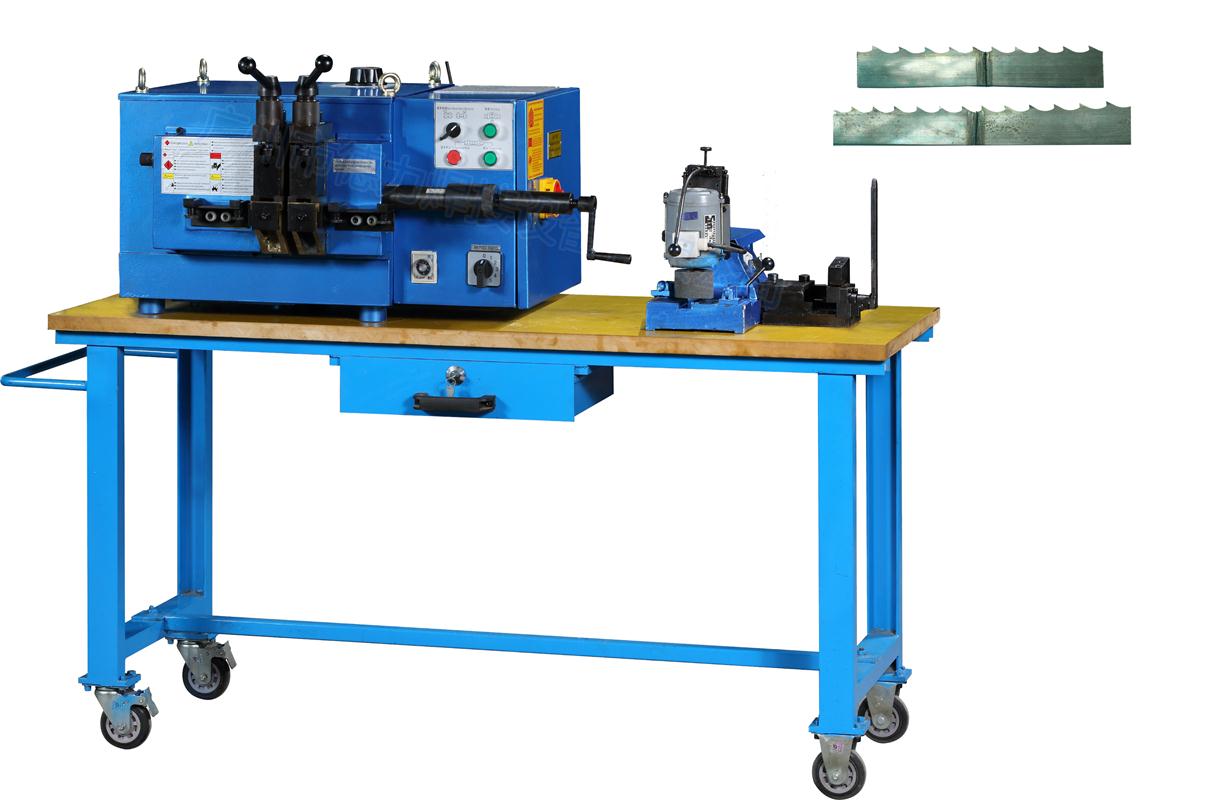

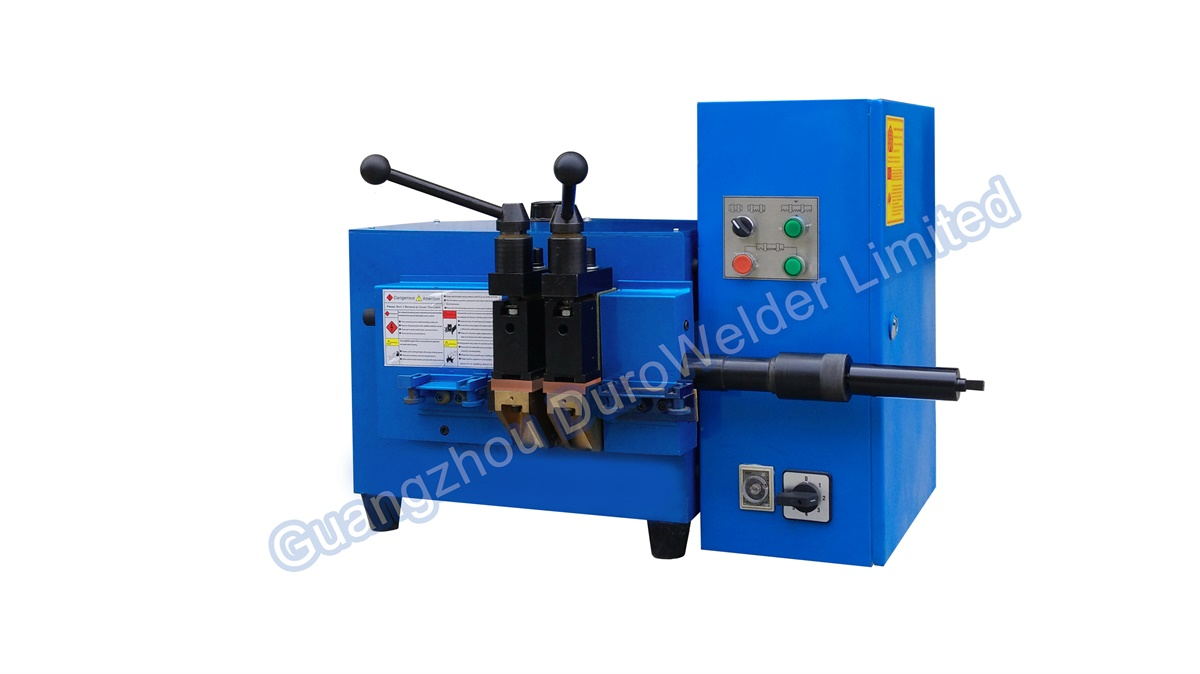

BAS-050MM Bandsaw Blade Butt Welder Main Principle and Features

Manual clamping,the motor drives the cam to upsetting and butt welding,then annealing manually.

1.Adopt manual clamping handle device and motorized cam mechanism,no need air source and air compressor, convenient to use.

2.Butt Flash is produced by motorized cam disc.

3.Upsetting force is produced by precisely adjustable spring loaded mechanism.

4.Annealing voltage is freely adjustable and Annealing time can be set from 0 to 10 minutes.

5.Automatic pressure relief during annealing process.

6.Basing on producing request,also can install the water cooling system to the basic and key welding electrodes.

Ⅴ.Butt Welder Main Technical Parameter
