un12
Dlyelectric
33455

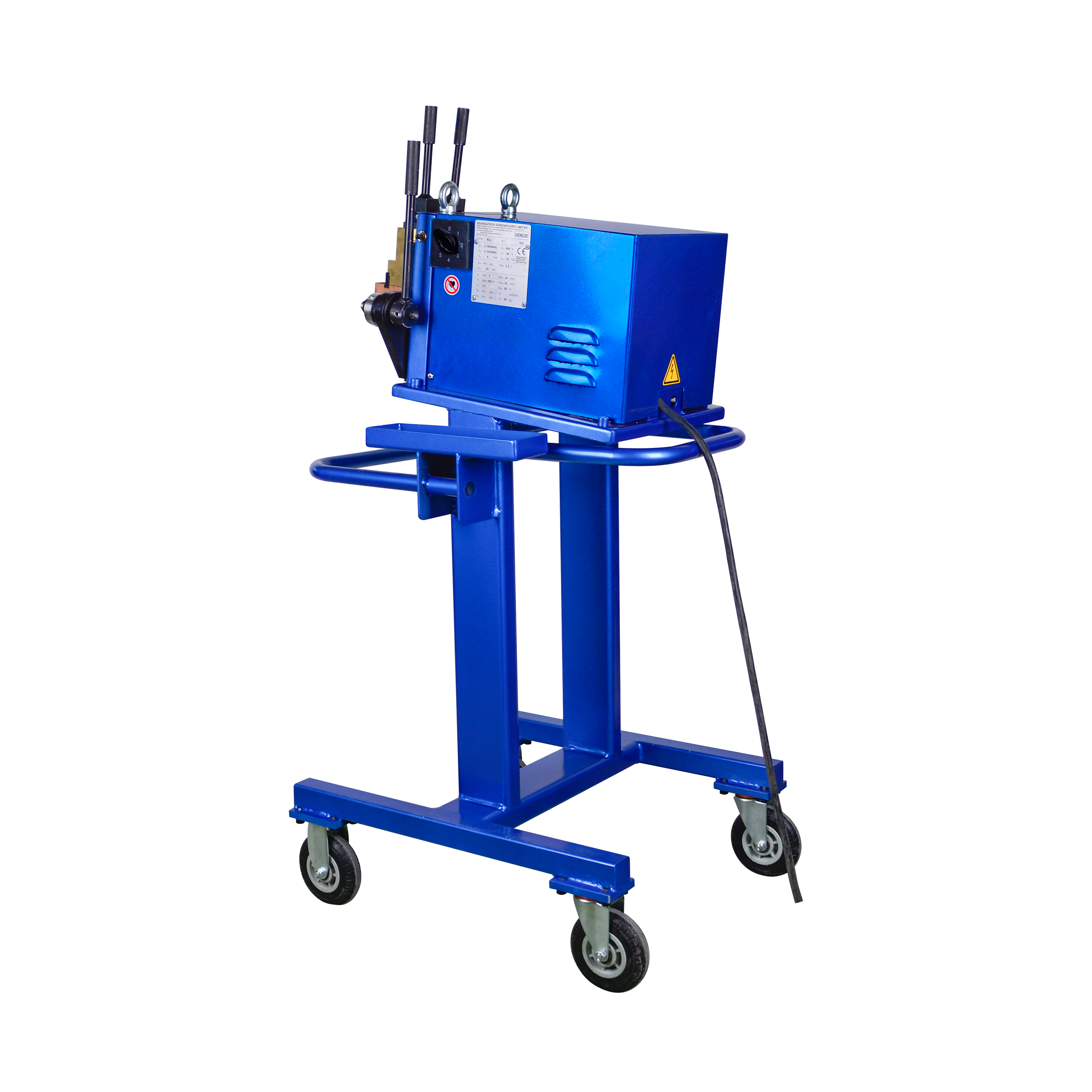

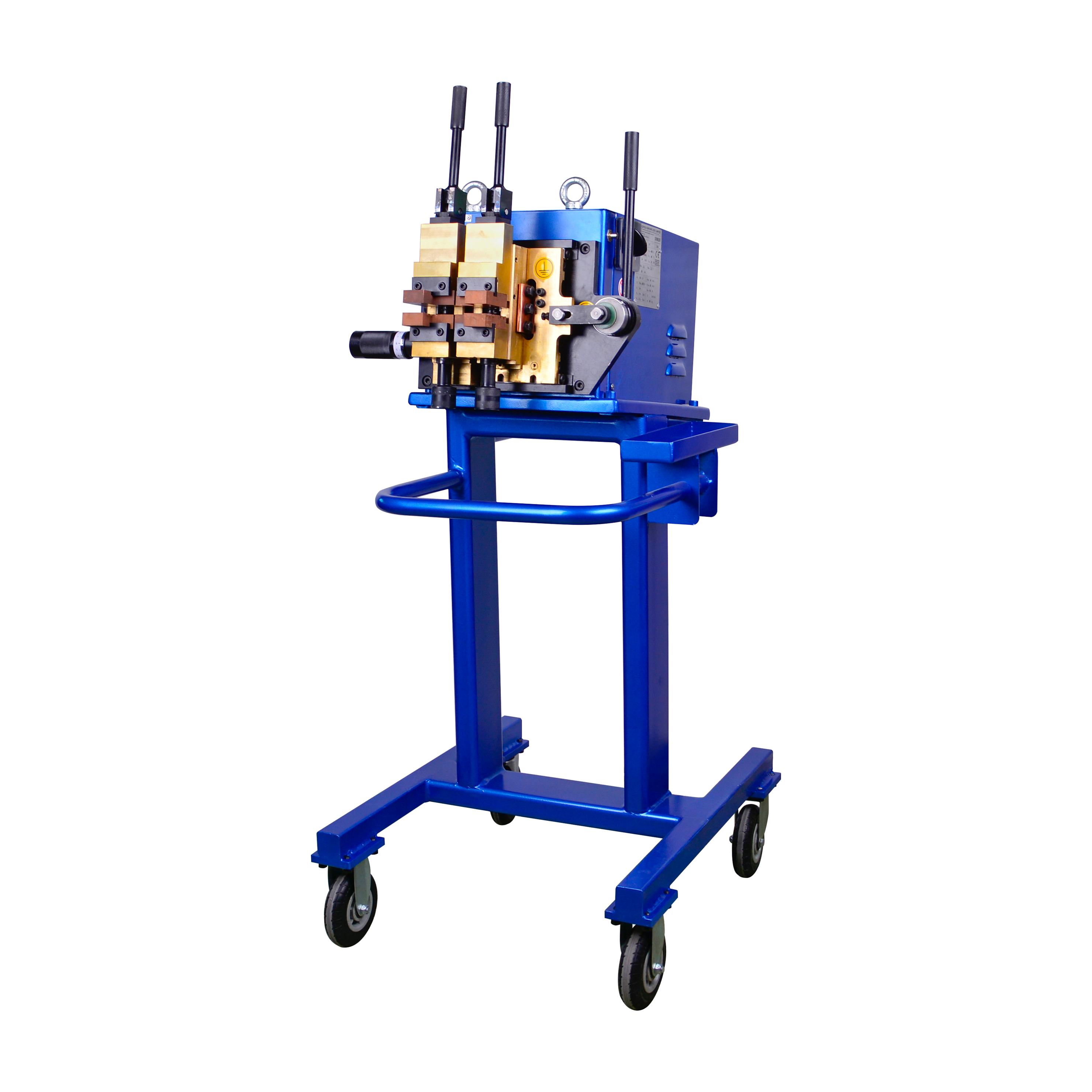

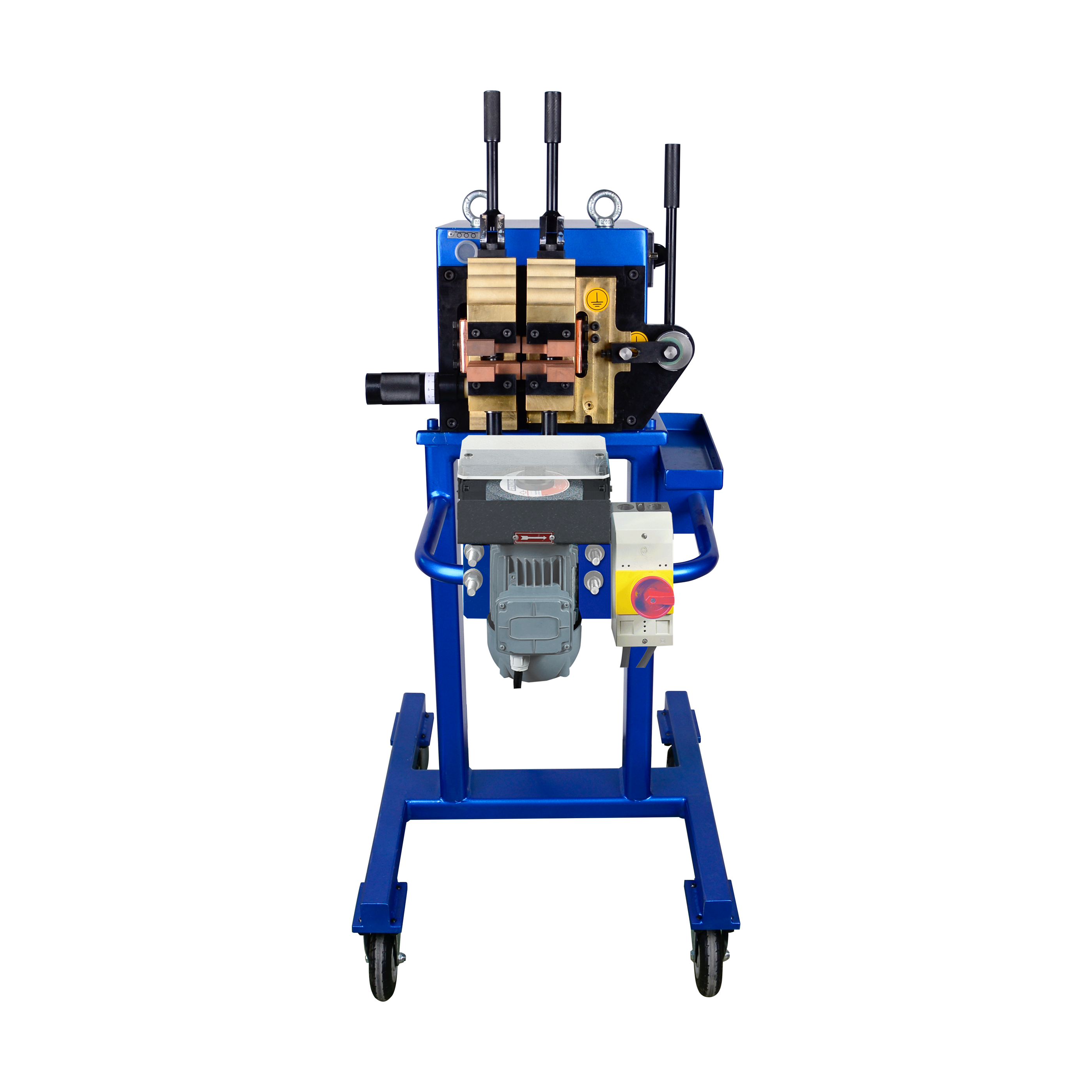

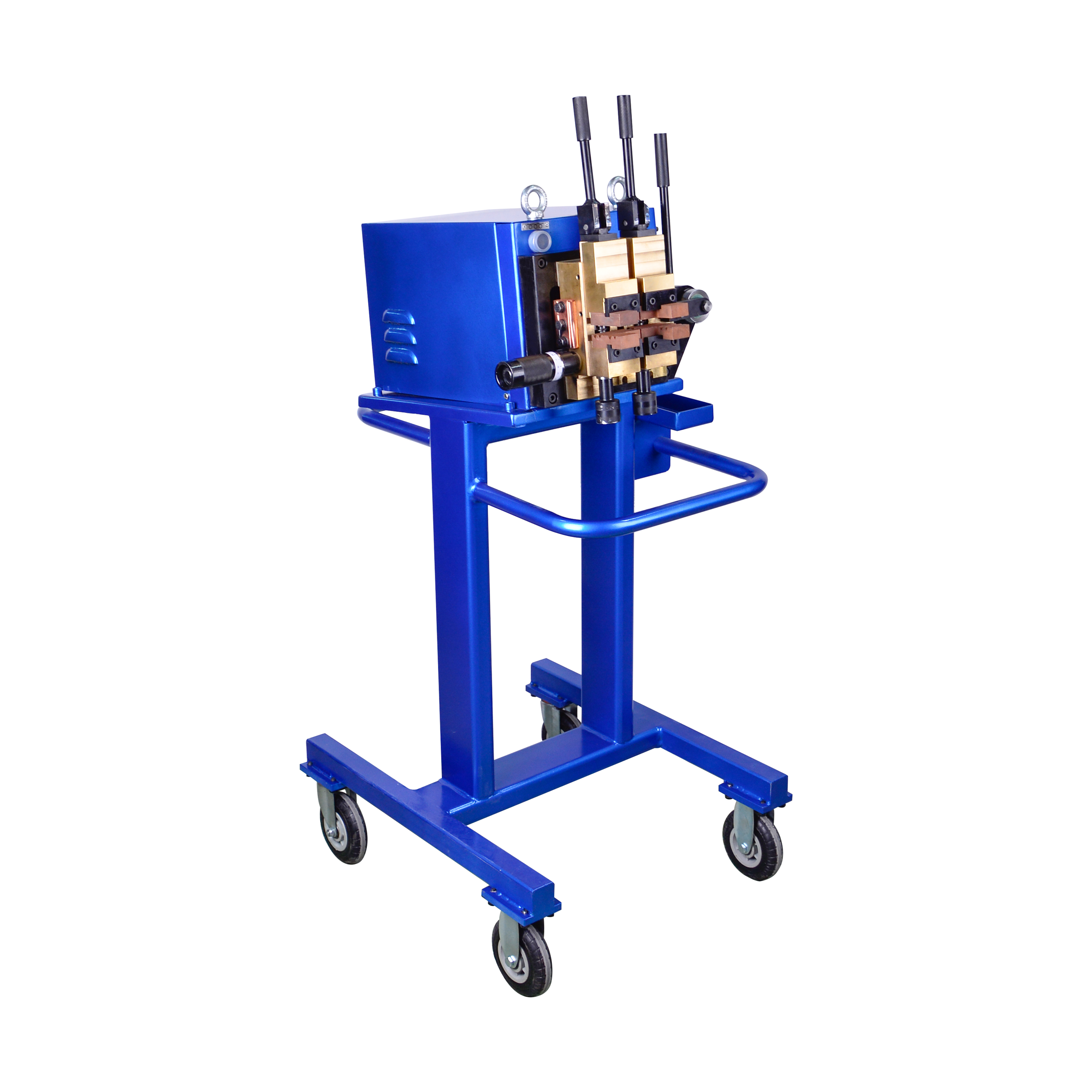

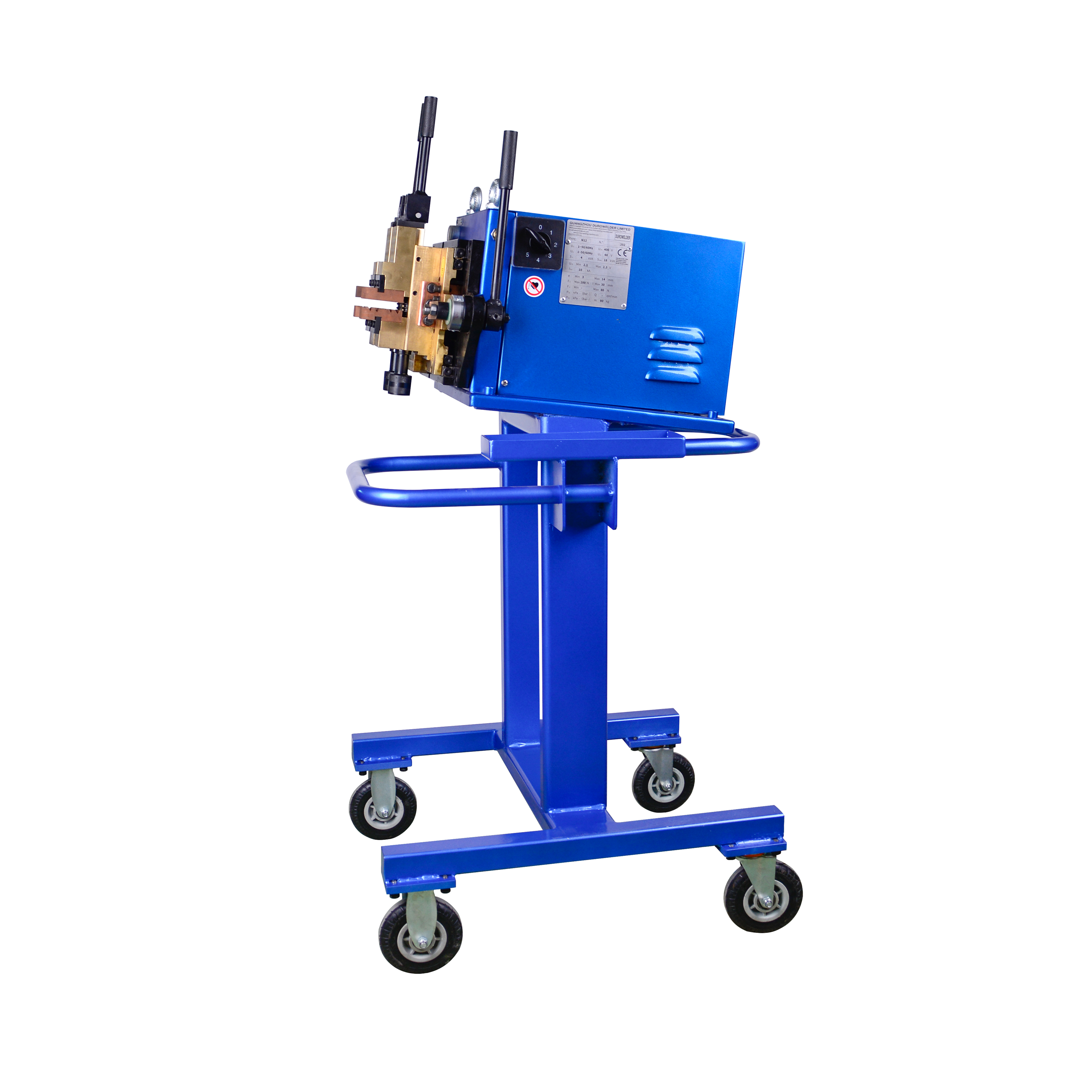

The Wire Butt Welder comes standard with a tempering function and a four-wheel trolley. A built-in scale allows for precise adjustment of the upsetting force and welding parameters for different workpiece sizes. The open clamps operate via a lever mechanism and a grinding motor can be optionally added to smooth the weld seam.
The Wire Resistance Butt Welding Machine Main Features:
Simple and efficient operation: Compared with flash butt welding, resistance butt welding is easier to operate, faster and more cost-effective.
High-quality welds: Welded joints are smooth with minimal burrs, simplifying subsequent processing.
Excellent adaptability: The compact, well-designed structure allows easy adjustment for workpieces of varying precision. A standard controller lets you separately adjust clamping, welding and upsetting parameters to ensure consistent weld quality.
Wide material compatibility: Capable of welding steel, brass, aluminum, copper rods, concrete reinforcing bars and other metals. It can also handle high-temperature alloys and dissimilar metals such as copper-aluminum.
Main Technical Parameters
Model Number | UN12 |
Input Power | Single-Phase Electric,50/60Hz,380-400V |
Rated Power At 50% | 4KVA |
Maximum Welding Power | 18KVA |
Installed Power |
4KVA |
Secondary Short Circuit Current | 10KA |
Diameter Of The Workpiece To Be Welded | 3-14MM |
Max Clamping Force | 2000N |
Dimensions | 78CM*65CM*110CM |
Weight | 82KG |
