Equipment Main Characteristics

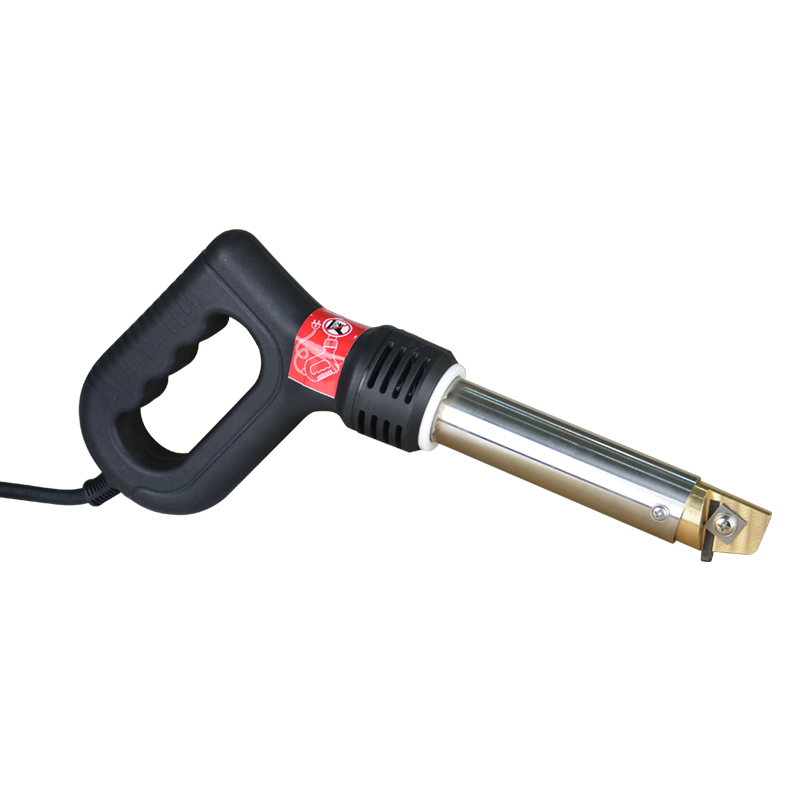

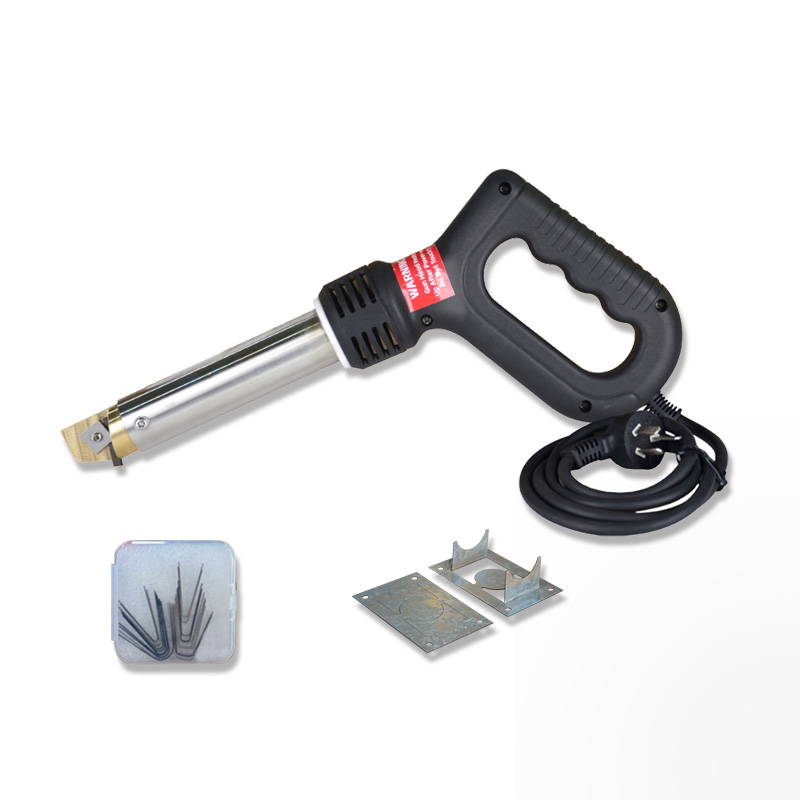

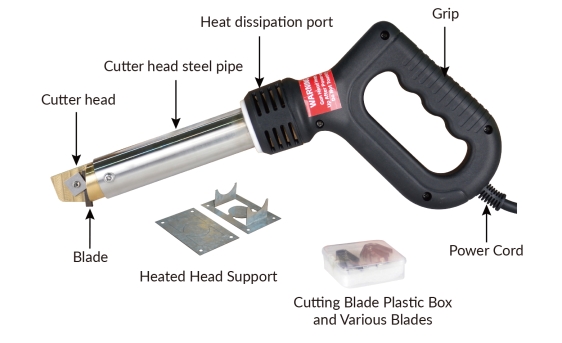

The tire grooving device mainly transmits current through a high-frequency inverter power
supply, and forms a resistance heating blade in the handle to cut and groove the tires of
trucks or tractors to produce lines, and restore the grip of the tires. It is 1 very practical
Retreading tools; especially for the retreading and reuse of solid truck tires and other
rubber products.
This machine can carve pattern grooves with a width of 3-20MM and a depth of 7-16MM on
the surface of tires and rubber, which are suitable for tire carving and plastic rubber grooving. 4 gear adjustment, the larger the gear, the deeper the engraved pattern; Carvable
patterns: U-shaped and V-shaped, the slotting device is light in weight, and the separate
heating control of the blade allows users to easily complete cutting and slotting.
Main Technical Parameters
Model No. TR-1KW-AC-S
Input Power Supply AC,110V / 220V ~240V, 50/60Hz
Output Voltage 1KW

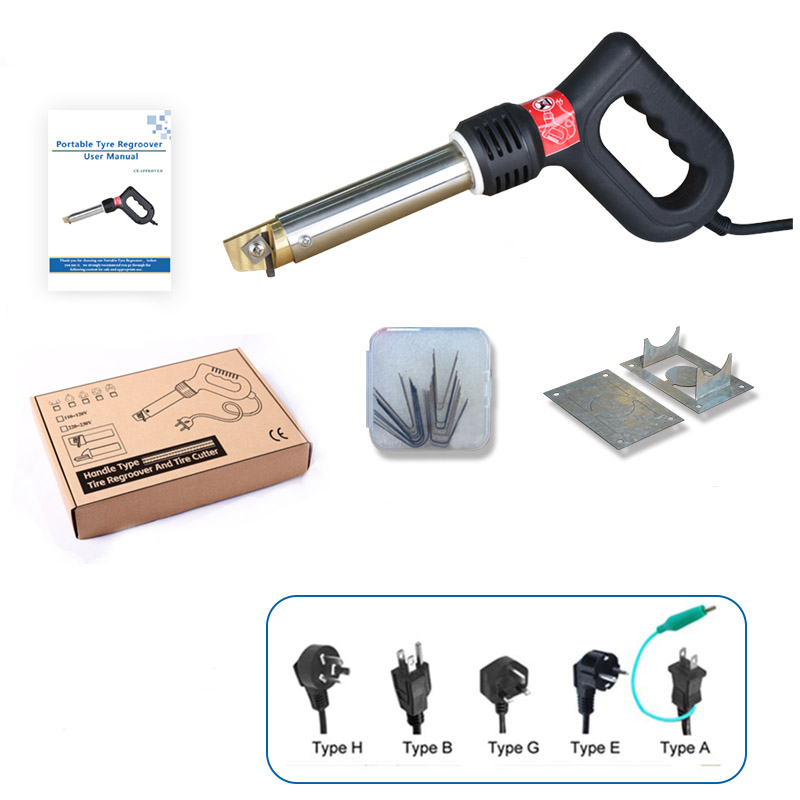

Plug Type Type H,Type B,Type G,Type E
Max Output Power AC, 8V
Portable Contacting Cable Length 170CM
Certificate CE(EMC, LVD)
Power Efficiency 85%
Over Dimension/Packing Size 32*26*22CM
Weight/Gross Weight 8.2KG
