1700W High Efficiency And Energy Saving Magnetic Induction Handheld Heater

DW-1.7KW Plus is a newly upgraded small handheld heater that ensures a high-power output of 1.7KW while reducing its size on the basis of traditional handheld heaters.It can be operated with one hand,has high output power,and is even more compact.

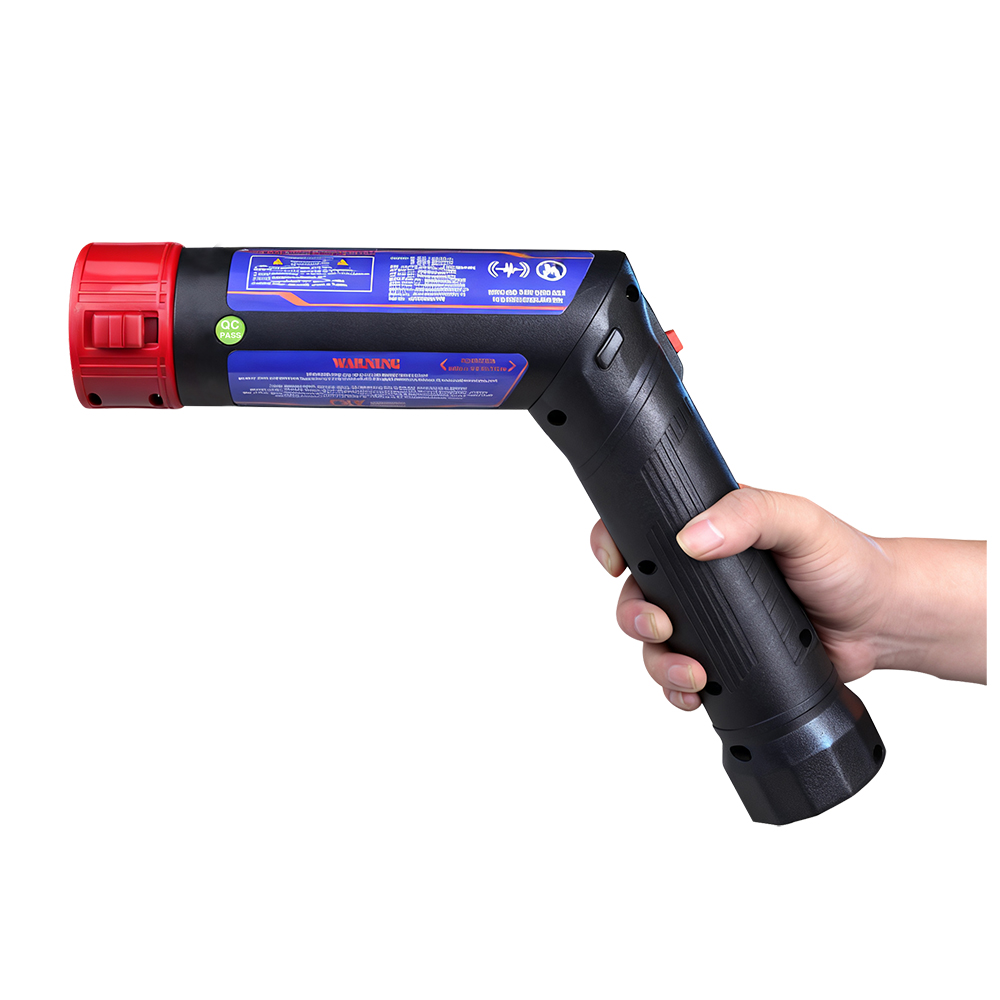

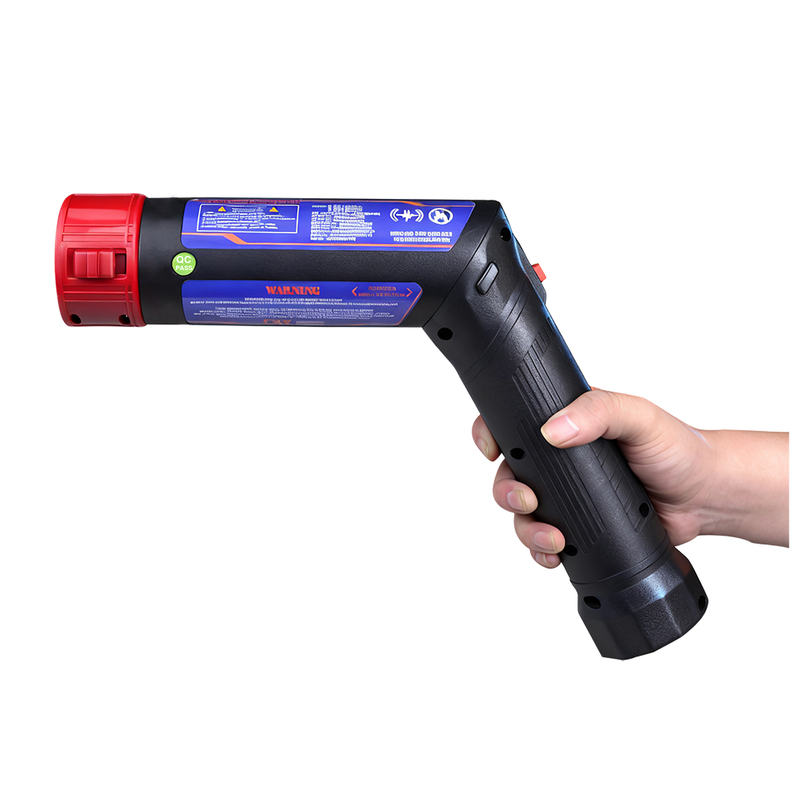

Adopting a rotating body design,the rotating body can become a pistol style heater,suitable for broader application scenarios.The installation and disassembly of the induction heating coil adopts a new type of fixed buckle,which does not require the use of fixing nuts,making it more convenient and safe.
Availability:
Quantity:
  • DW-1700w

  • Duro

  • dw17

Regarding the product protection mechanism,the DW-1.7KW Plus has a more comprehensive protection mechanism than other traditional small induction heaters.Through chip program control,it not only matches the single timed heating function,but also greatly improves the accuracy of temperature monitoring by the overheating protection program.The maximum time for a single heating is 150 seconds,which can complete any single heating task without reducing the service life due to endless heating.Compared to ordinary heaters with a temperature monitoring accuracy of ± 15 ℃,the DW-1.7KW Plus has a temperature monitoring accuracy of ± 1 ℃,greatly improving the self-protection performance of the equipment.

No open flames generated,no need to avoid various flammable substances such as plastics and fibers;The electricity cost is lower, the weight is lighter,and the operation is more convenient.This device is a flameless portable induction heater,which is a better and safer heating method for metal materials compared to traditional car repair shops' open flame heating or LPG flame heating.

This machine perfectly applies electromagnetic induction technology and can heat small parts and various metal components in automobiles and machinery.It is mainly used to heat various corroded bolts,nuts,gears,pulleys,bearings,sensors,and so on in automobiles.European imported components,American technology,made in China,with stable and reliable performance.

For example,in the situation shown in Figure [1] [2],it is definitely not wise to use an open flame to heat the nut.This not only fails to achieve the desired effect,but may also damage other components and be very dangerous; And using this machine(as shown in the figure [3] [4]) for heating,the heating is uniform and can quickly achieve the purpose of loosening and removing nuts, without the generation of open flames,making it very safe.

Model No.

DW-1.7KW Plus

Input Power Supply

110V-120V,220V-240V

Output induction frequency

45KHZ

Max Output Power

1.7KW

Cooling Way

Air Cooling

Continuous and Constant Heating Time

150seconds

Cable Length

150CM

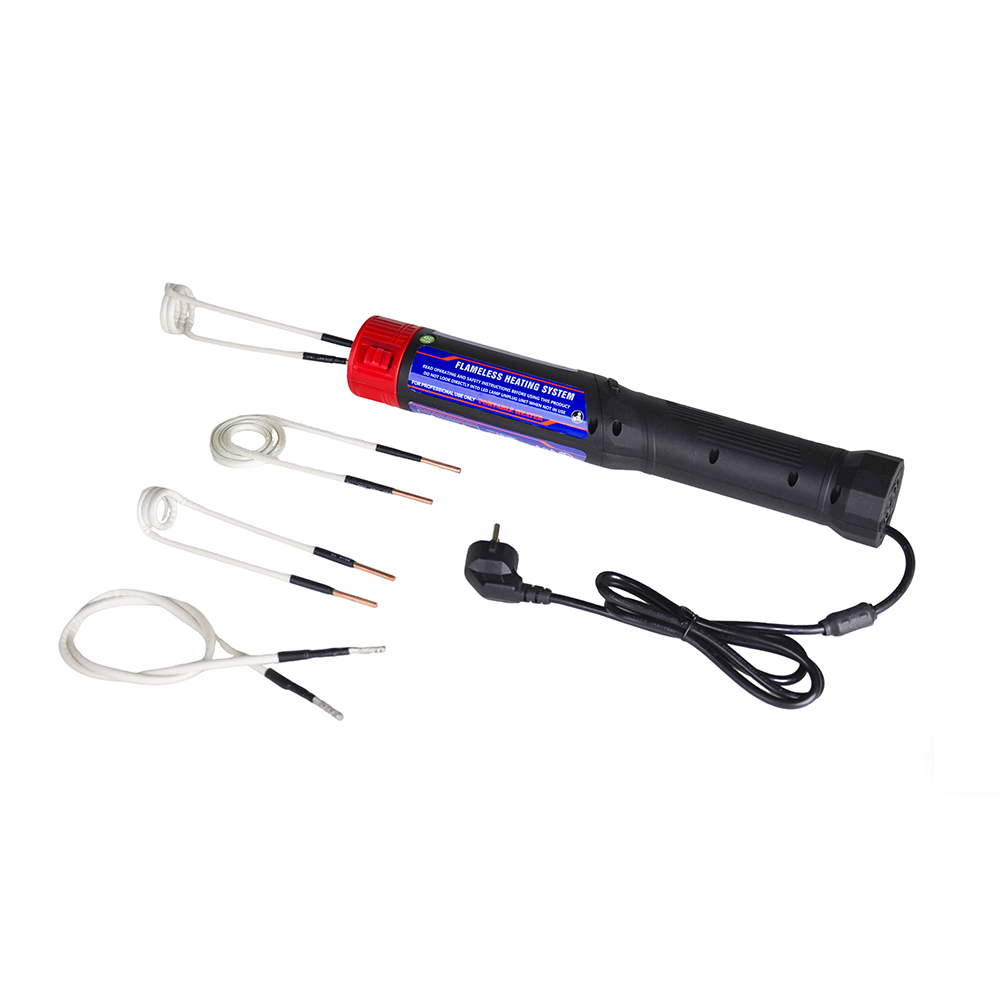

Induction coil diameter and quantity

750mm flexible cable × 1 pc

60mm flat coil × 1 pc

20mm coil × 1 pc

30mm coil × 1 pc

Plug Type

Type H, Type B, Type G,Type E

Device Net Weight

1.4KG

Device Size

L:42CM*W:6.5CM*H:6.5CM

Total Packing Weight

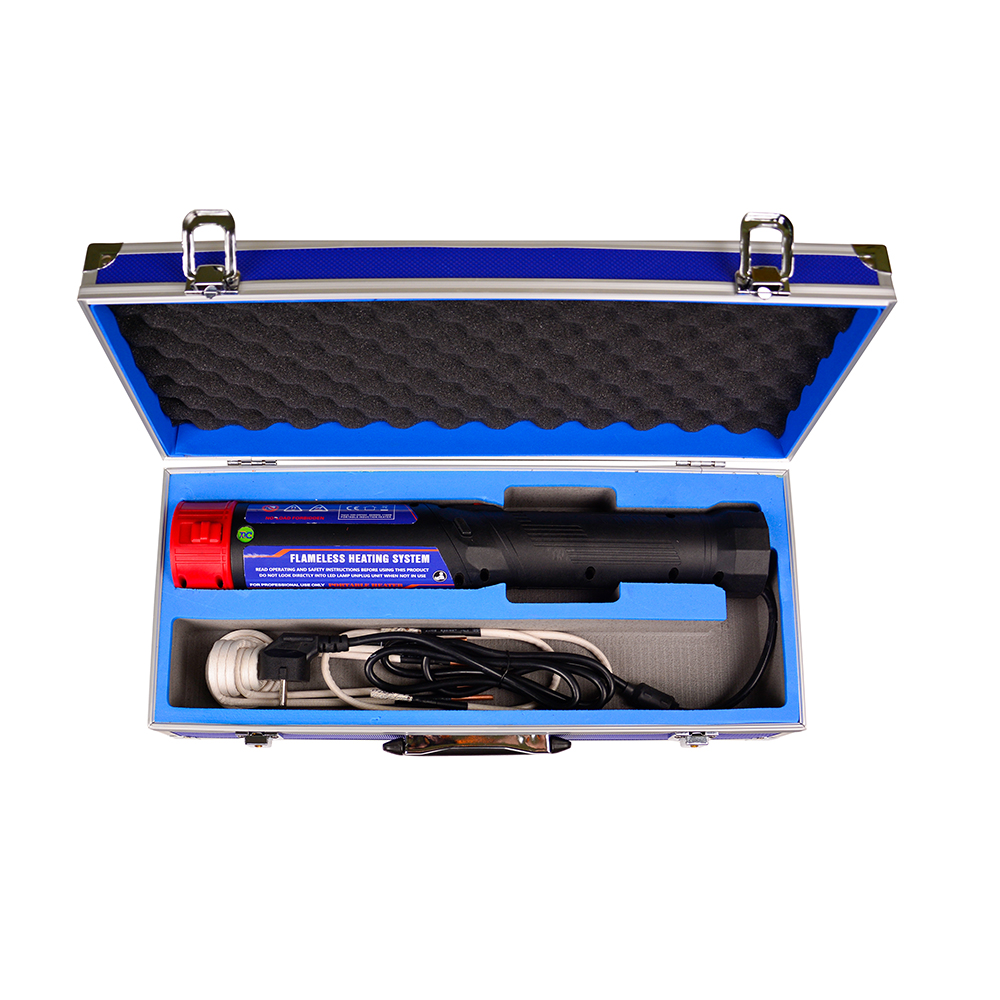

Aluminum Case Weight:3KG

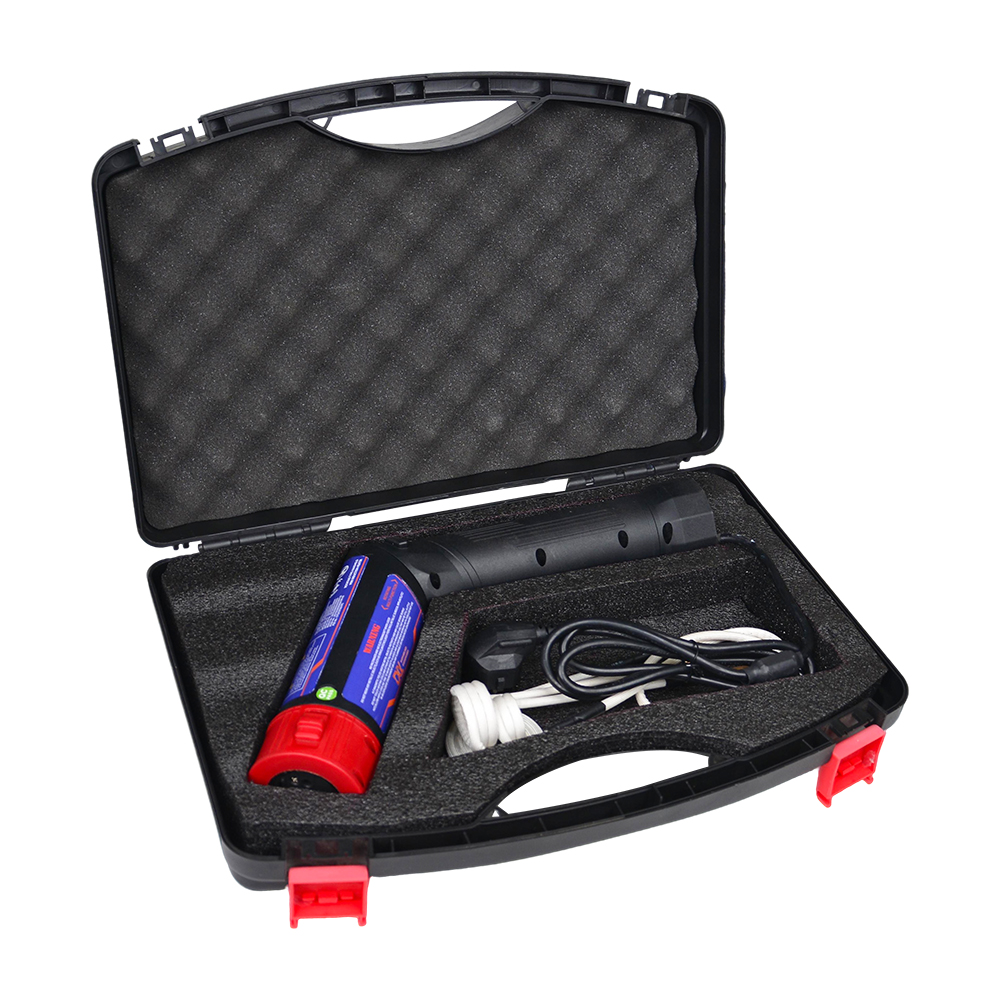

Plastic Case Weight:3.3KG

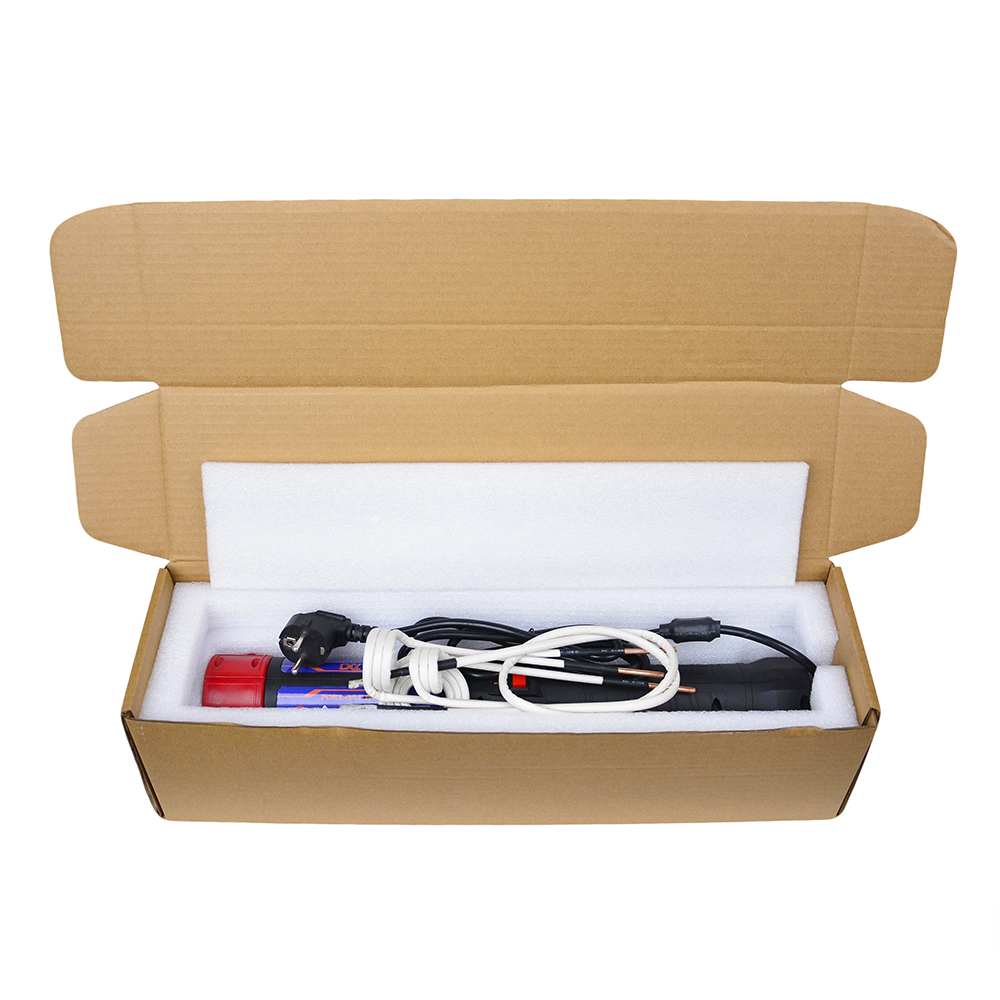

Carton Box Weight:2KG

Total Packing Size

Aluminum Case Packaging Dimensions:48*23*14CM

Plastic Case Packaging Dimensions:44*32*13CM

Carton Box Packaging Dimensions:49*13*14CM
